Convertor Socket 1G/2G To 3-Gang 13A with USB A+C (40W PD3.0)

£33.10
Unit price per
Save £10

Tax included. Shipping calculated at checkout.

Product Description
Conversion Socket

Model 8533C40

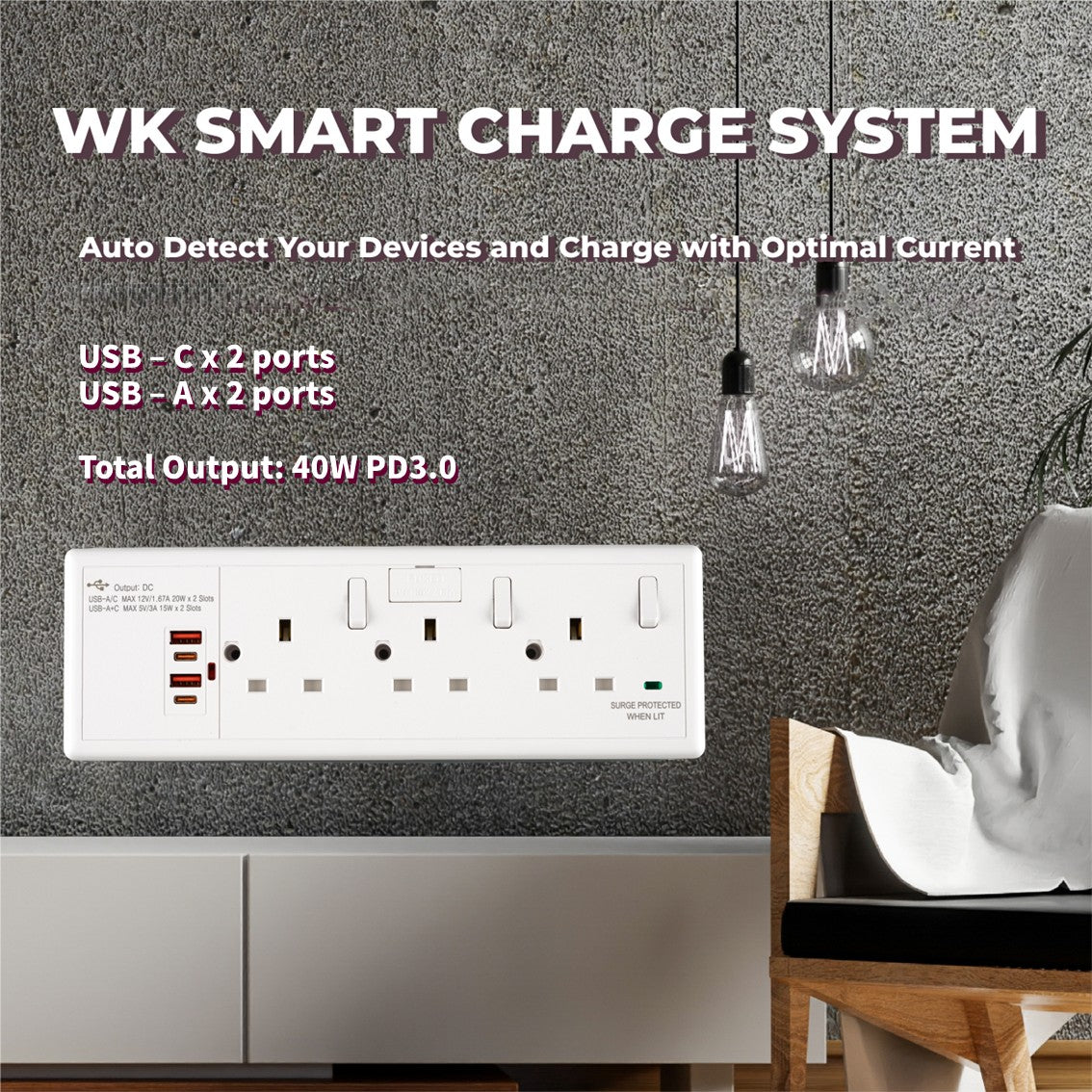

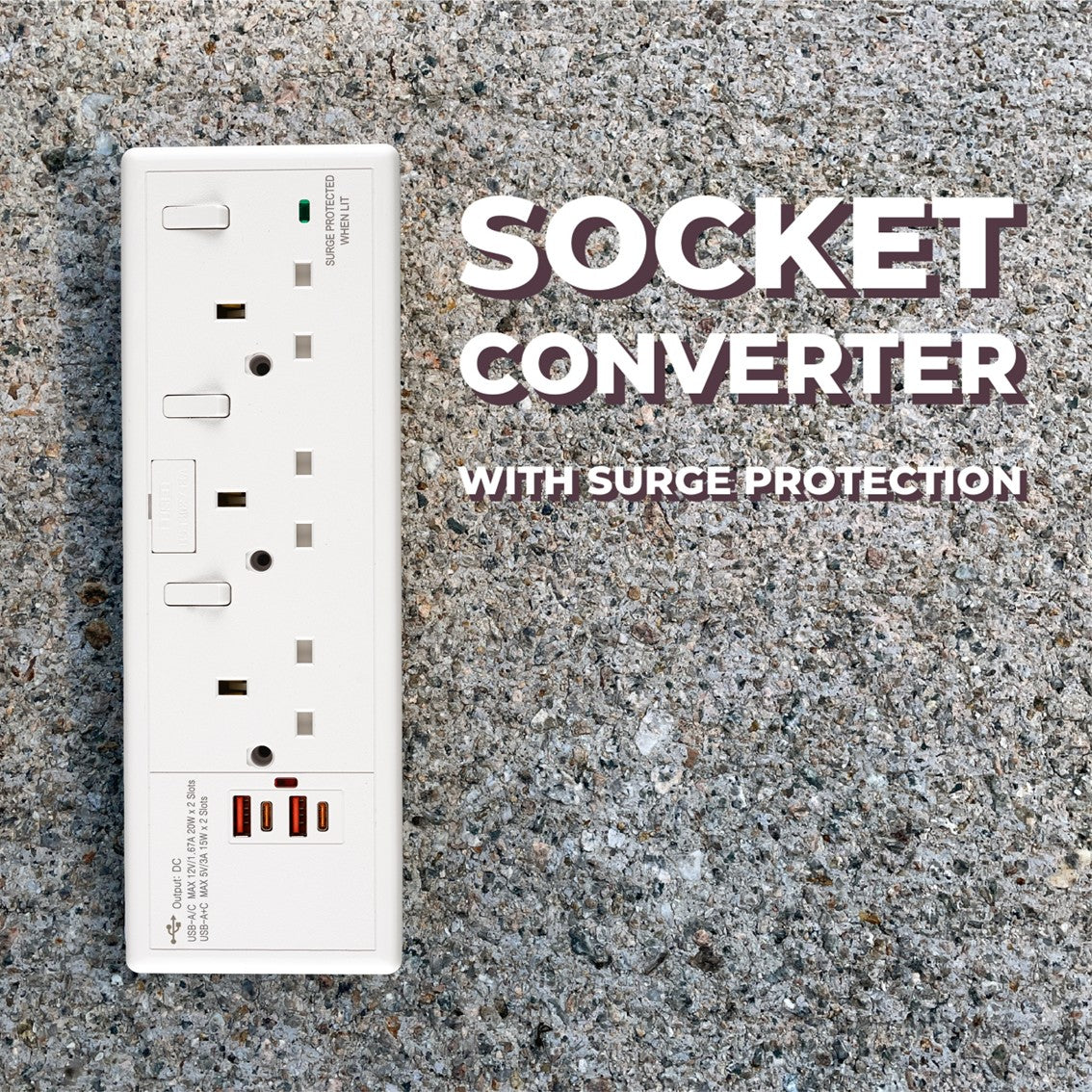

3 Gang switched Conversion Socket with USB-A x 2 and USB-C x 2 charging ports and surge
protection, 13A fused

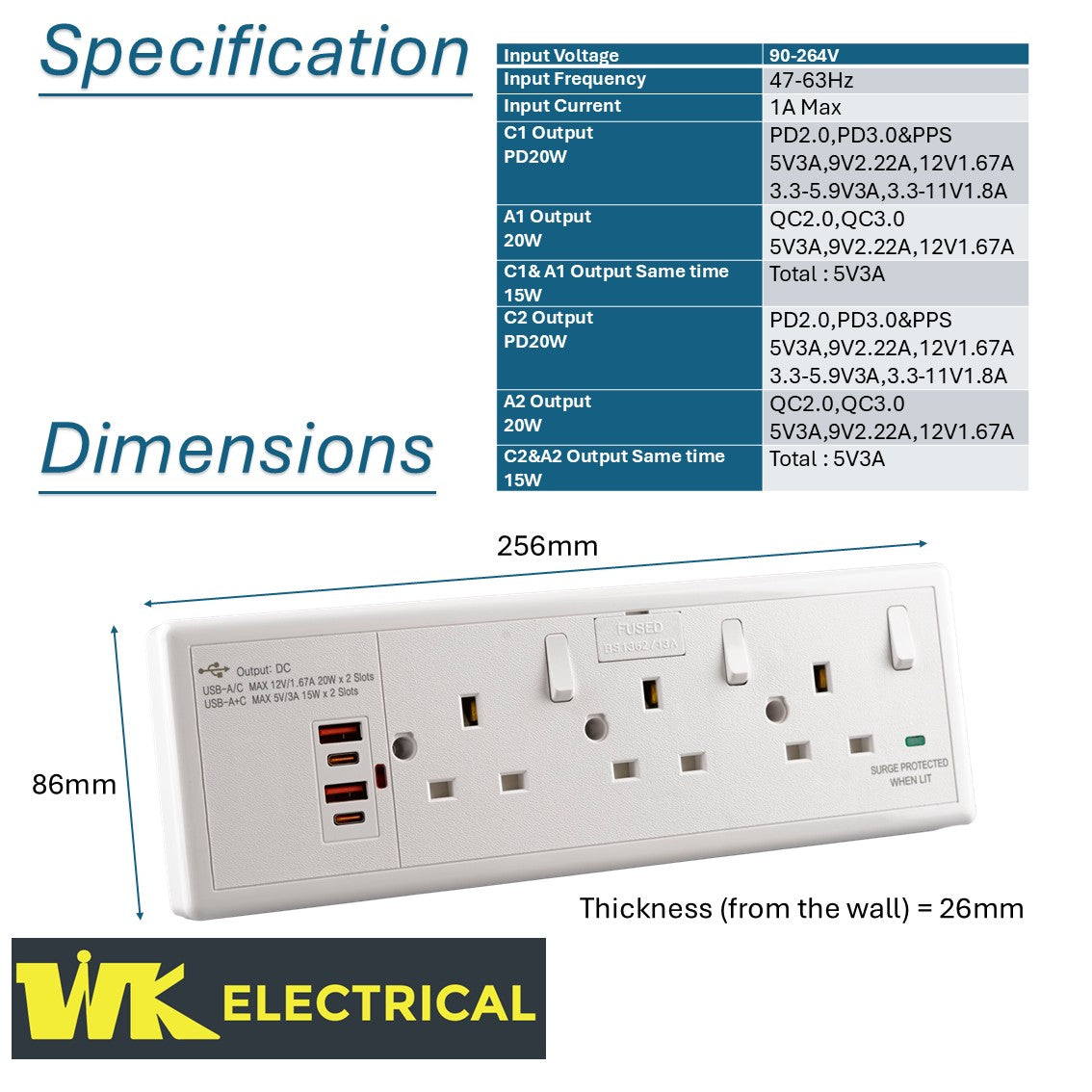

Product Specification
   Principal material - Thermoplastic housing, brass / bronze contact and bussbars
   Input: 250Vac 50 Hz supply , max load 13A
   Dimensions: 258mm x 88mm x 26mm

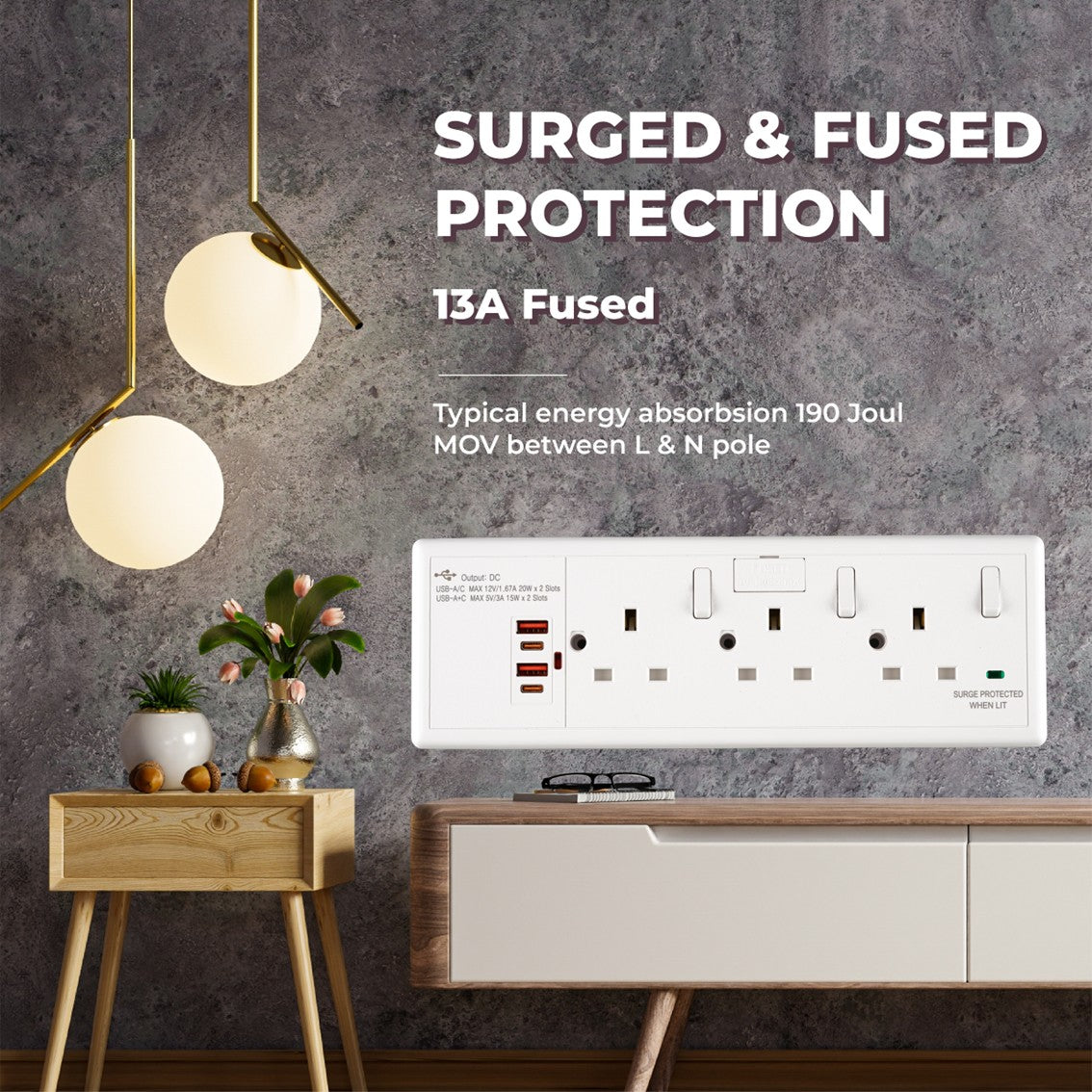

Surge device
   Typical energy absorbsion 190 Joule MOV between L & N pole

USB ports (combined output)
Total 40W Maximum with self- setting overheat protection

Input Voltage	90-264V
Input Frequency	47-63Hz
Input Current	1A Max
C1 Output PD20W	PD2.0,PD3.0&PPS 5V3A,9V2.22A,12V1.67A 3.3-5.9V3A,3.3-11V1.8A
A1 Output 20W	QC2.0,QC3.0 5V3A,9V2.22A,12V1.67A
C1& A1 Output Same time 15W	Total : 5V3A
C2 Output PD20W	PD2.0,PD3.0&PPS 5V3A,9V2.22A,12V1.67A 3.3-5.9V3A,3.3-11V1.8A
A2 Output 20W	QC2.0,QC3.0 5V3A,9V2.22A,12V1.67A
C2&A2 Output Same time 15W	Total : 5V3A

Conformance to BS or EN No (s) and or approval/s
   LVD : BS 1363-2:2016 + A1:2018
   EMC directive: EN55022, EN55032, EN55024, EN61000

Intended Application

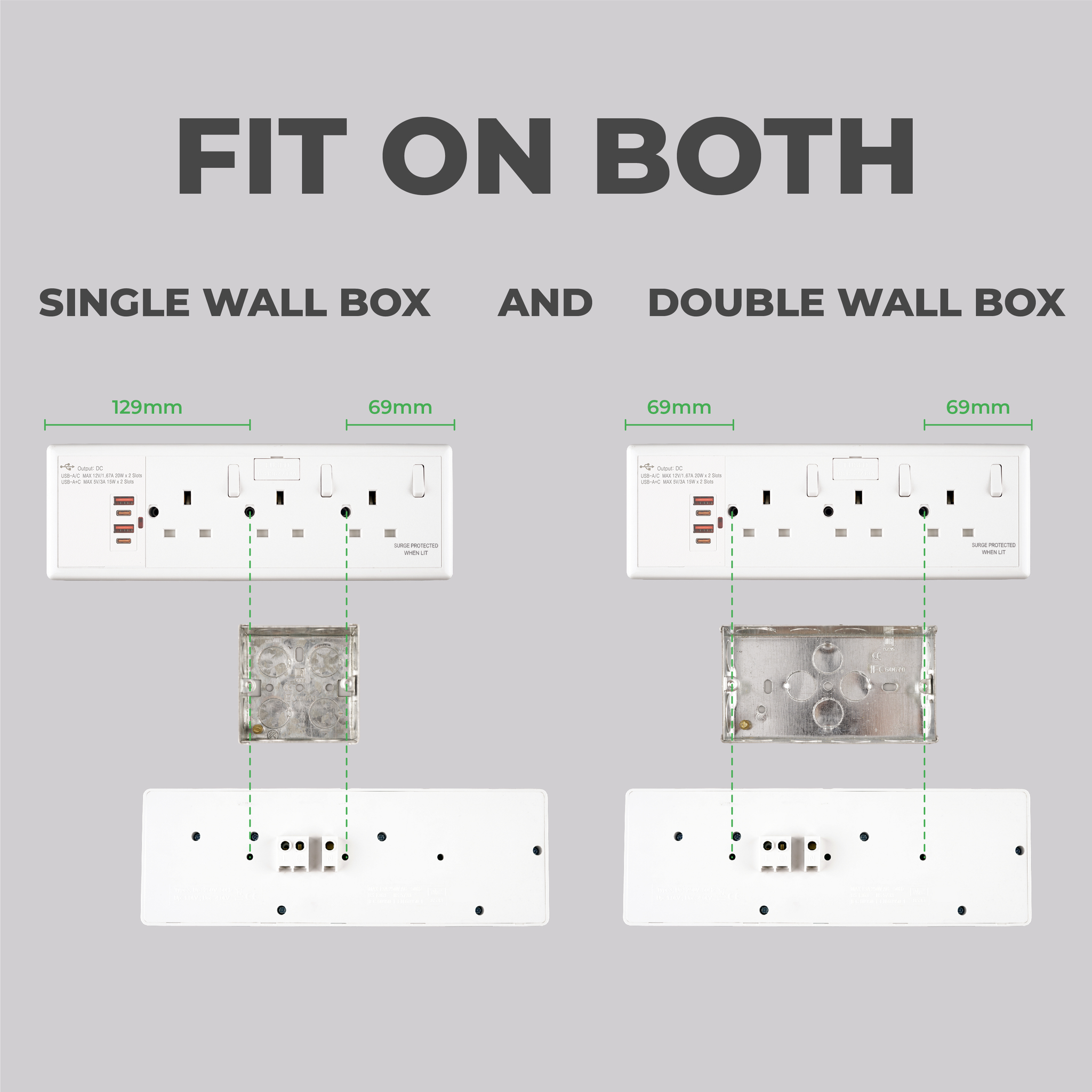

   Converts existing single or twin wall plate socket to a 3G or 4G socket
   Can be fitted in 25mm BS back box

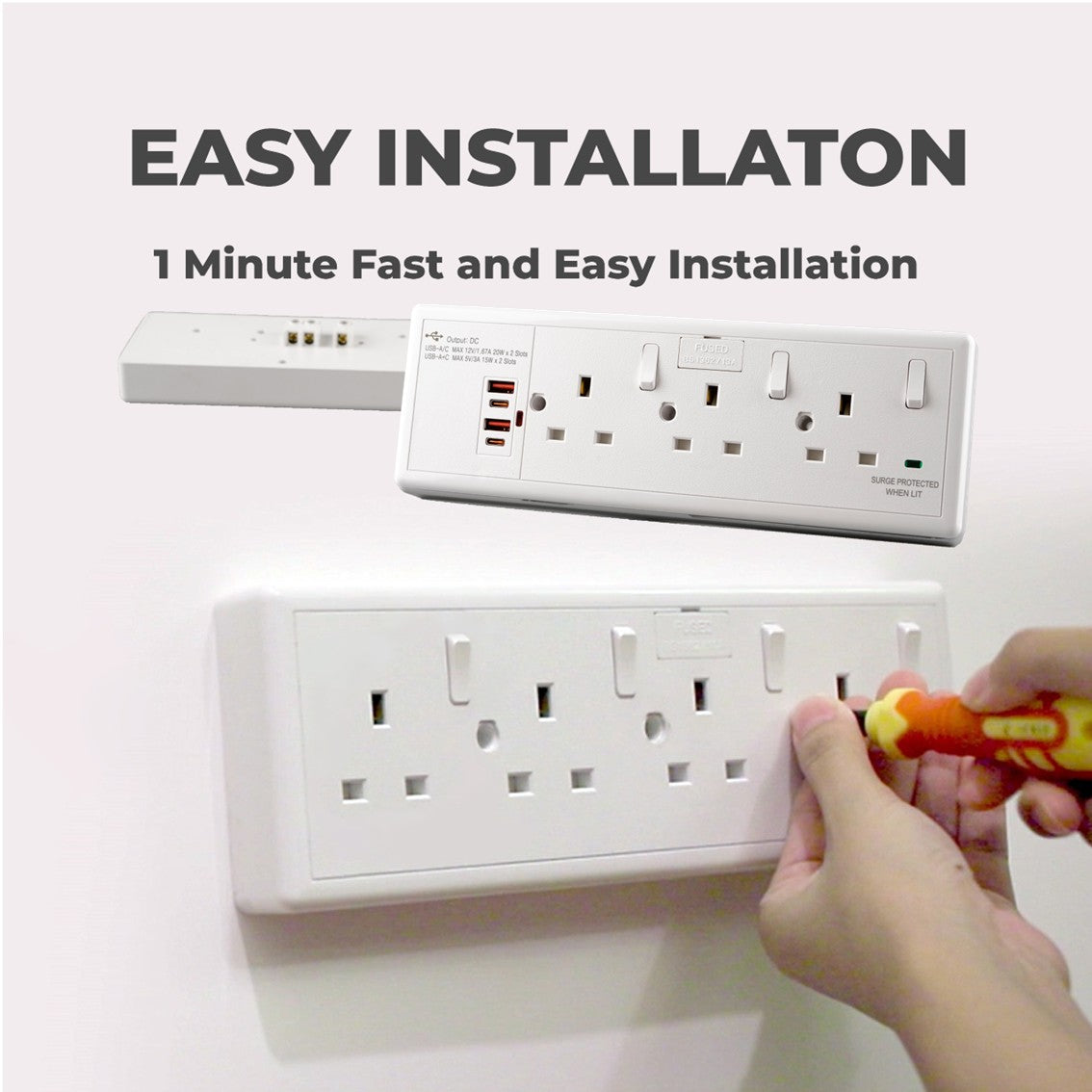

   Installation should be carried out by a qualified electrician
   Switch off mains supply during installation and do not over load
   Do not operate in damp or humid environment
   Do not operate close to heater or high temperature heat source
   Replacement fuse should be BS1362 approved
