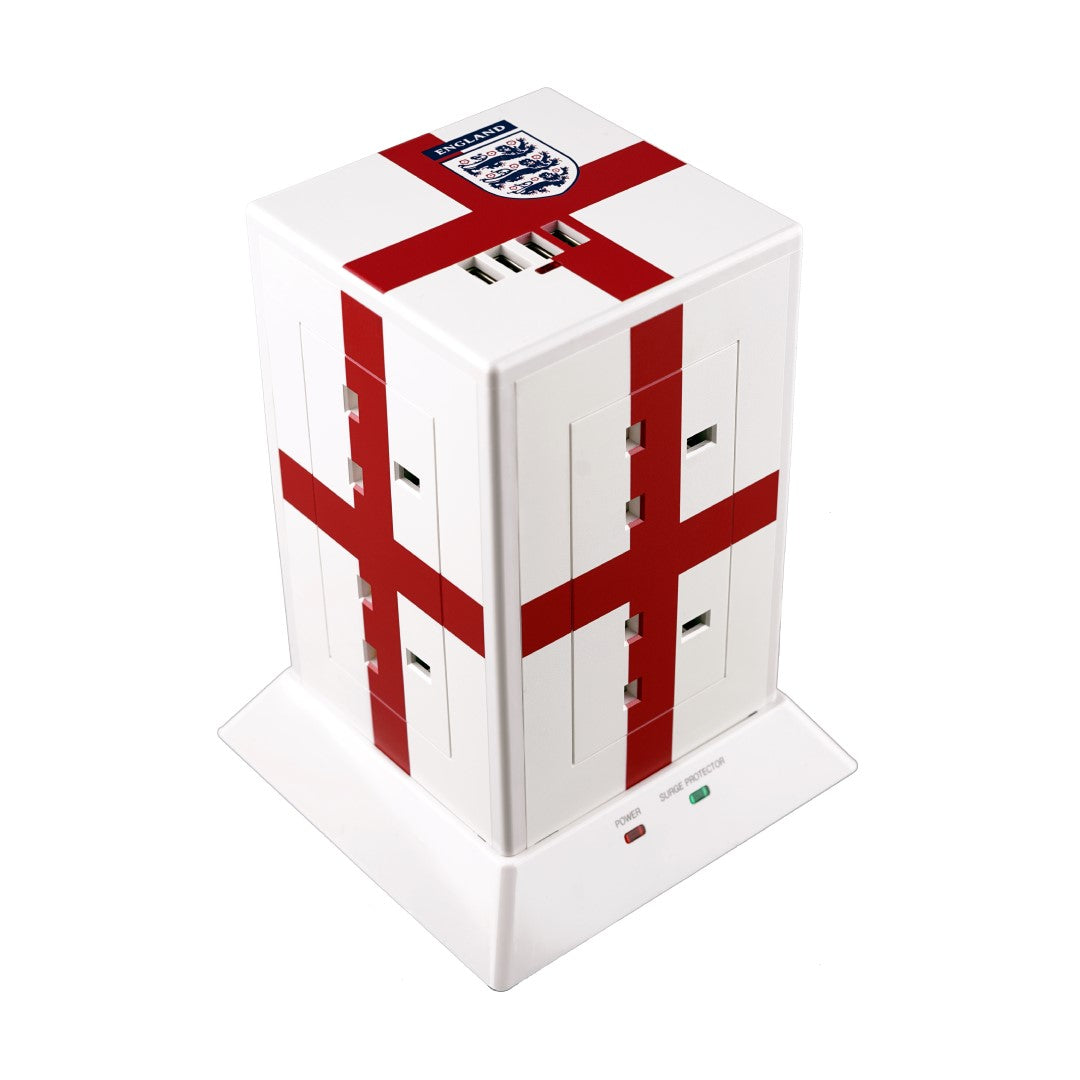

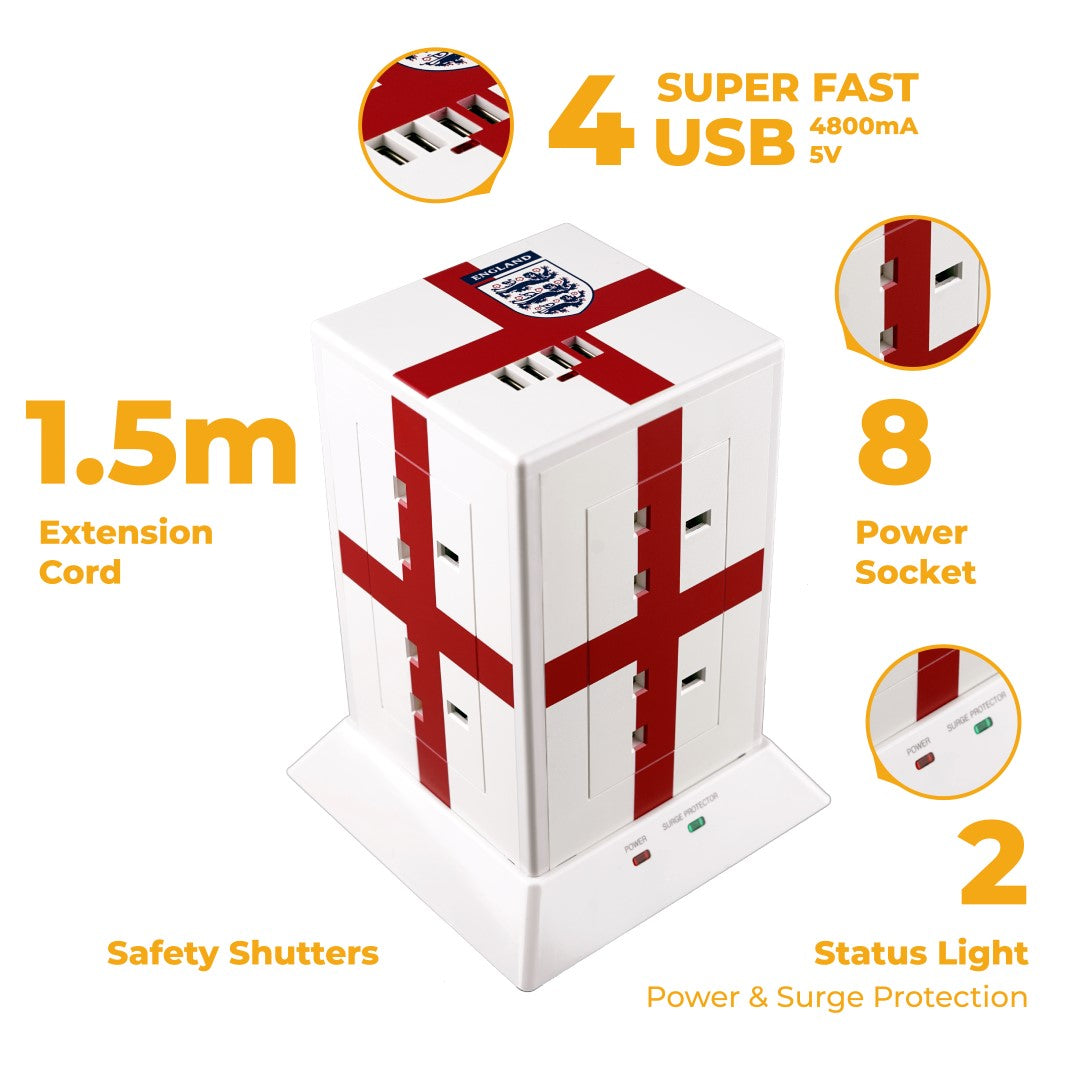

8 Way Tower Socket with Surge and USB (4800mA) – St George's Cross
8 gang tower socket
with 4 USB (4800mA)
with 1.5M cable
Dimension: 135mm x 135mm x149mm
Product Specification
Principal material - Thermoplastic housing, brass / bronze contact and
bussbars
Input: 250Vac 50 Hz supply , max load 13A
Surge device
Typical energy absorbsion 190 Joule MOV between L & N pole
USB ports (combined output)
Typical 5V DC 4800mA with self- setting overheat protection
Conformance to BS or EN No (s) and or approval/s
LVD : BS 5733 , IEC60950-1
EMC directive: EN55022, EN55032, EN55024, EN61000

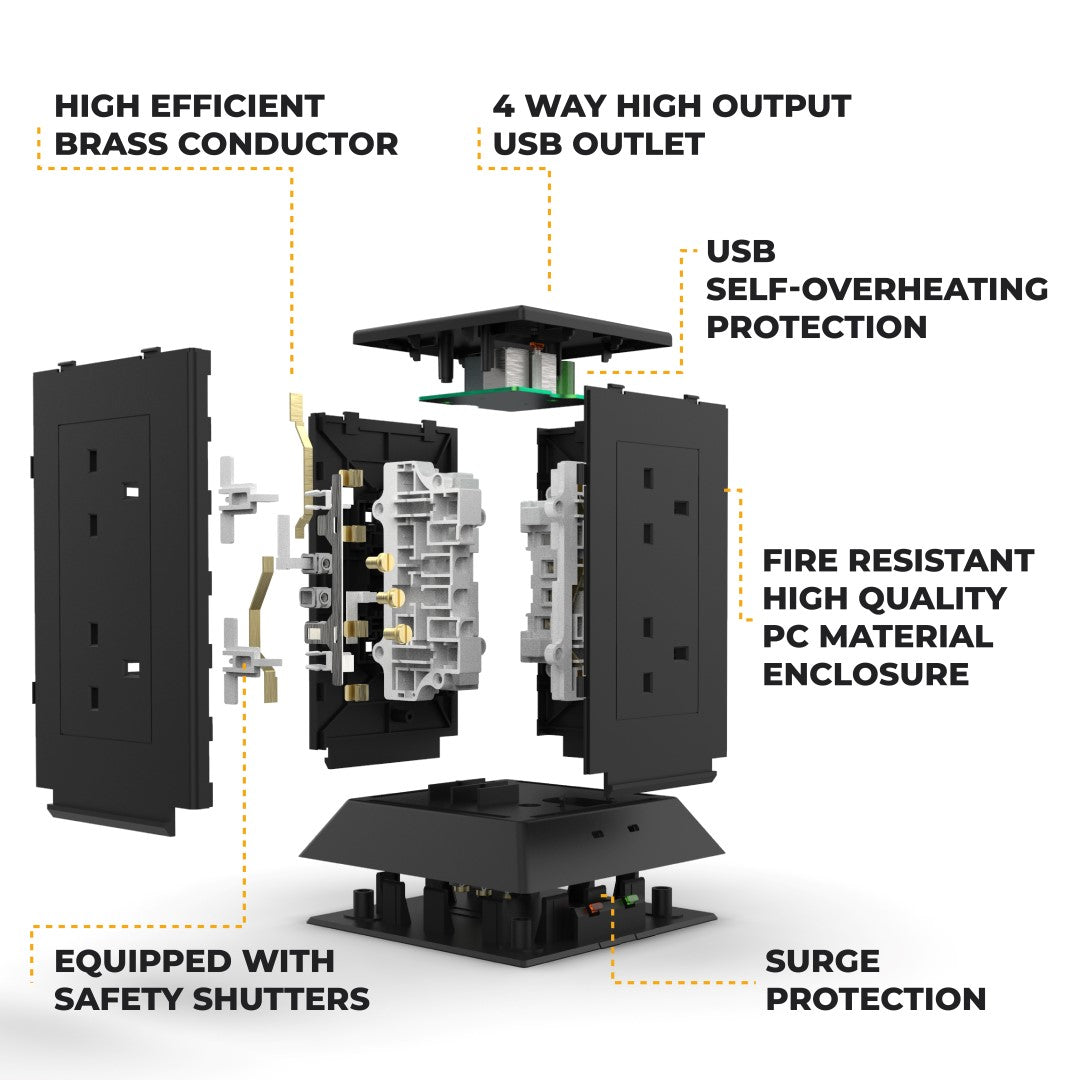

Product Features
- High output – Fast Charging, Support more devices simultaneously
- Smart Charge – Compatible with more than 90% smart phones in the current market
- Self overheating protection – Ensure Safety from our Products and the devices
- Achieve European ErP Level VI – Energy saving, Environmental Friendly
Intended Application
Do not operate in damp or humid environment
Do not operate close to heater or high temperature heat source
Replacement fuse should be BS1362 approved
For Indoor use only
