Convertor Socket 1G/2G To 3-Gang 13A with USB (4800mA)
Conversion Socket
Model 8533

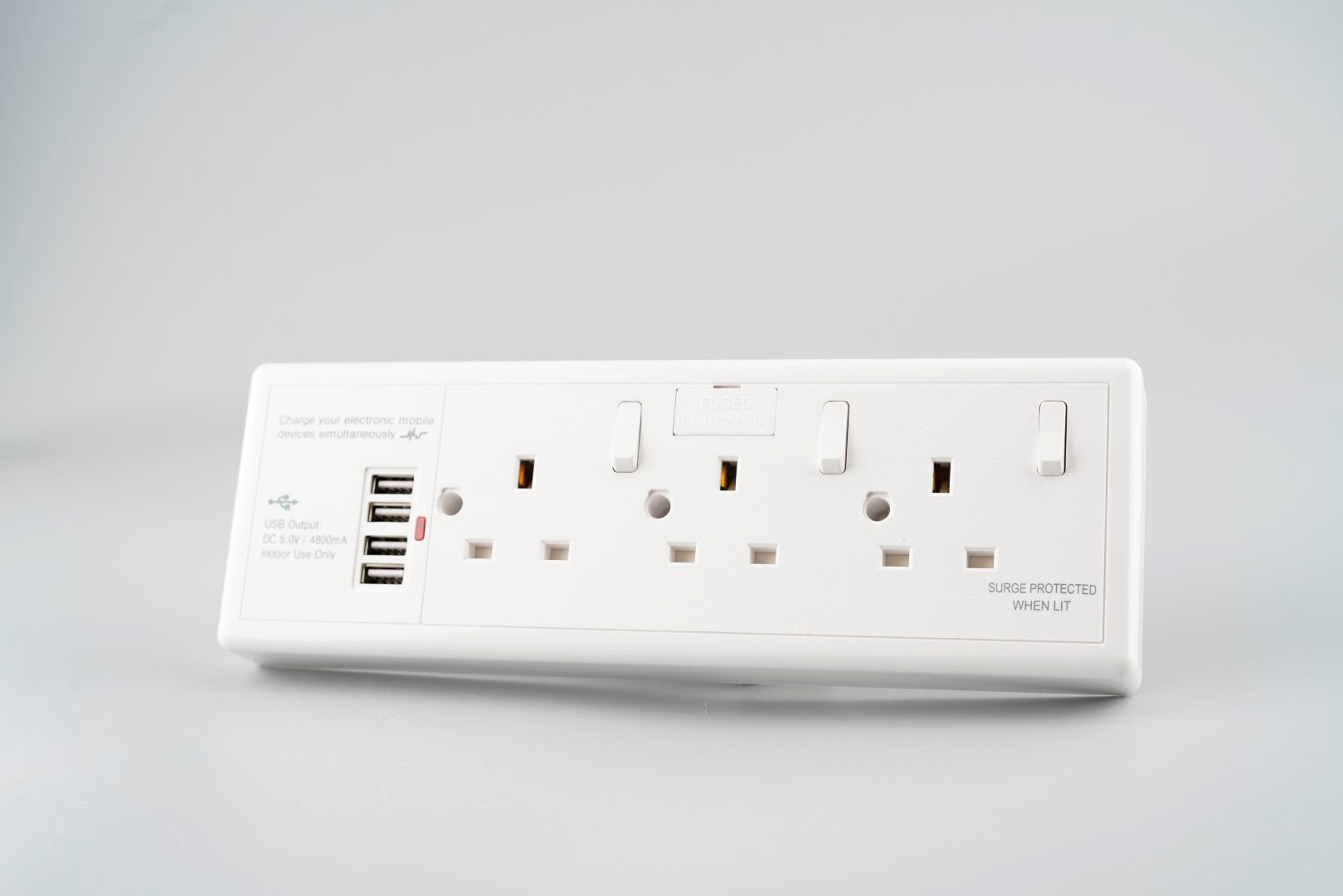

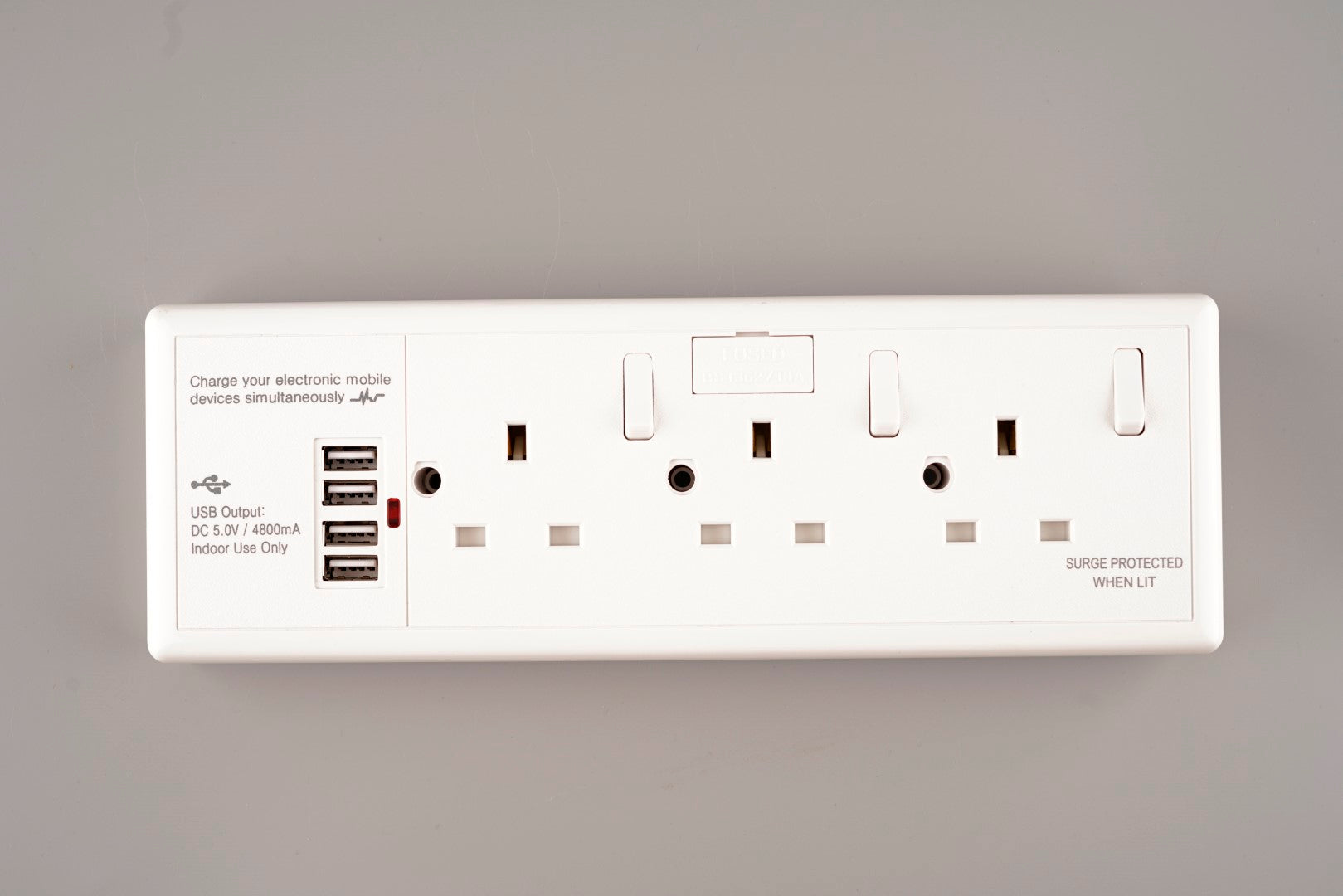

3 Gang switched Conversion Socket with 4 USB charge ports and surge
protection, 13A fused

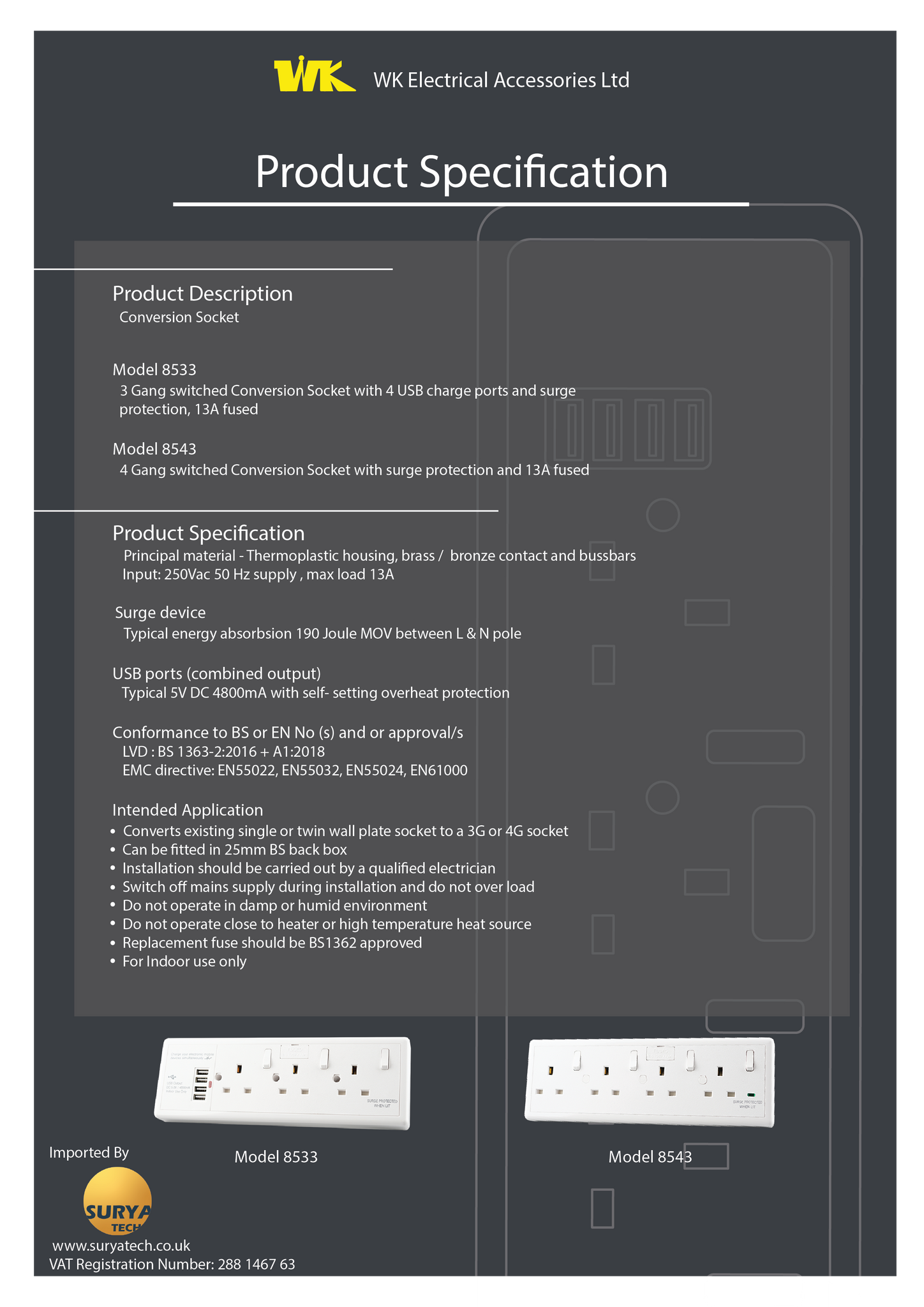

Product Specification
Principal material - Thermoplastic housing, brass / bronze contact and
bussbars
Input: 250Vac 50 Hz supply , max load 13A
Model 8533
3 Gang switched Conversion Socket with 4 USB charge ports and surge
protection, 13A fused
Product Specification
Principal material - Thermoplastic housing, brass / bronze contact and
bussbars
Input: 250Vac 50 Hz supply , max load 13A
Dimension : 258mm x 88mm x 26mm

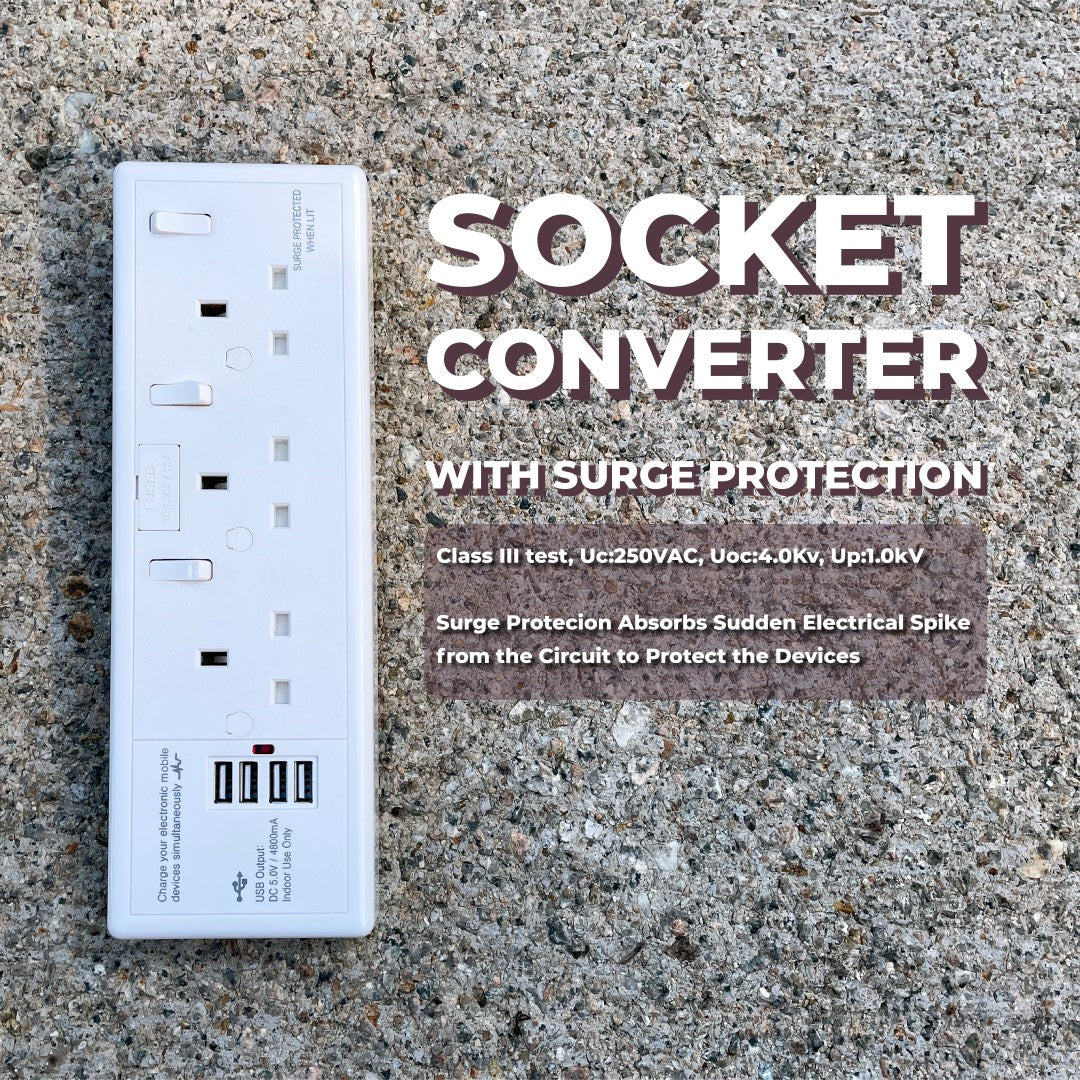

Surge device
Typical energy absorbsion 190 Joule MOV between L & N pole

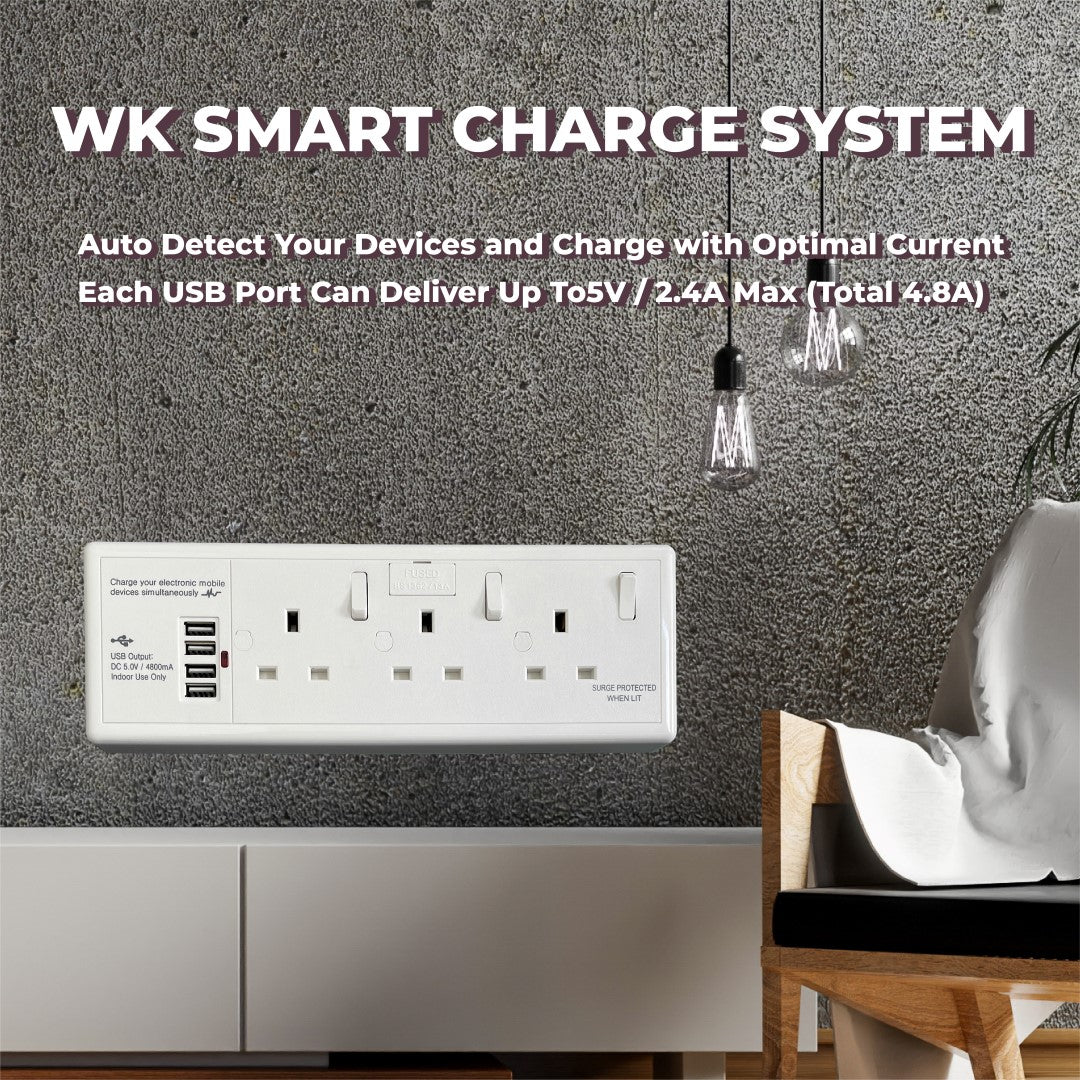

USB ports (combined output)
Typical 5V DC 4800mA with self- setting overheat protection
Conformance to BS or EN No (s) and or approval/s
LVD : BS 1363-2:2016 + A1:2018
EMC directive: EN55022, EN55032, EN55024, EN61000
Intended Application

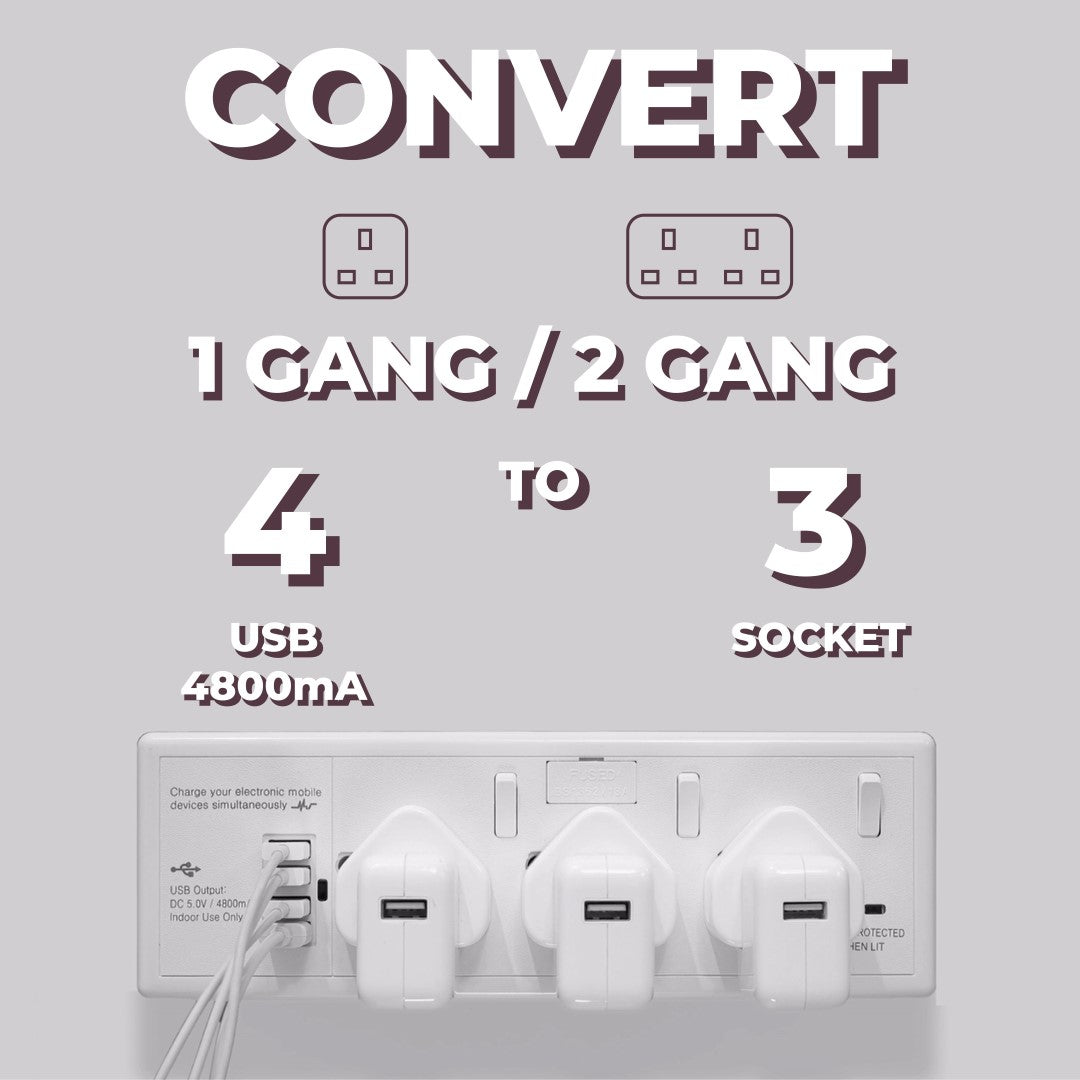

Converts existing single or twin wall plate socket to a 3G or 4G socket
Surge device
Typical energy absorbsion 190 Joule MOV between L & N pole
USB ports (combined output)
Typical 5V DC 4800mA with self- setting overheat protection
Conformance to BS or EN No (s) and or approval/s
LVD : BS 1363-2:2016 + A1:2018
EMC directive: EN55022, EN55032, EN55024, EN61000
Intended Application
Converts existing single or twin wall plate socket to a 3G or 4G socket
Can be fitted in 25mm BS back box
Installation should be carried out by a qualified electrician
Switch off mains supply during installation and do not over load
Do not operate in damp or humid environment
Do not operate close to heater or high temperature heat source

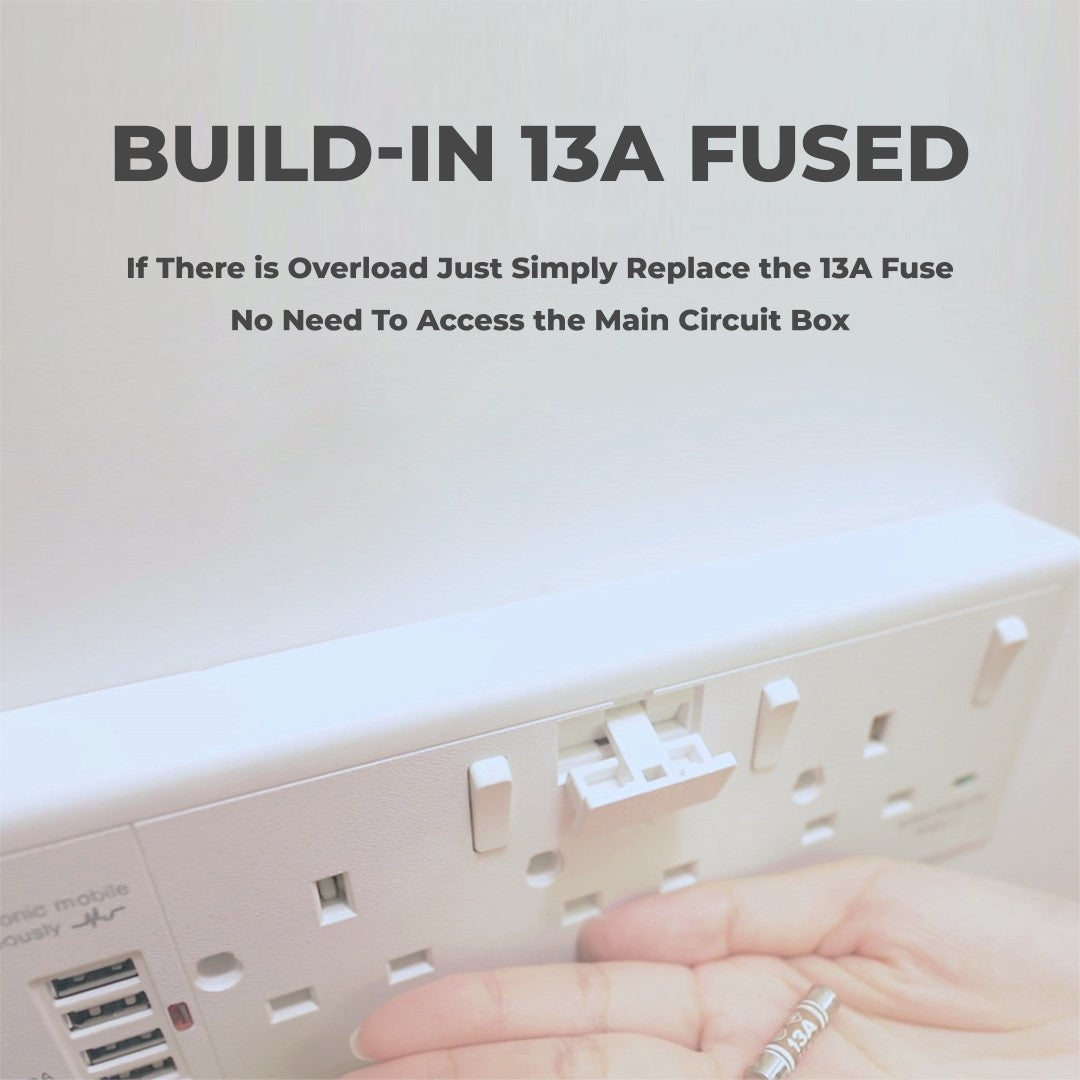

Replacement fuse should be BS1362 approved
For Indoor use only
Installation should be carried out by a qualified electrician
Switch off mains supply during installation and do not over load
Do not operate in damp or humid environment
Do not operate close to heater or high temperature heat source
Replacement fuse should be BS1362 approved
For Indoor use only
