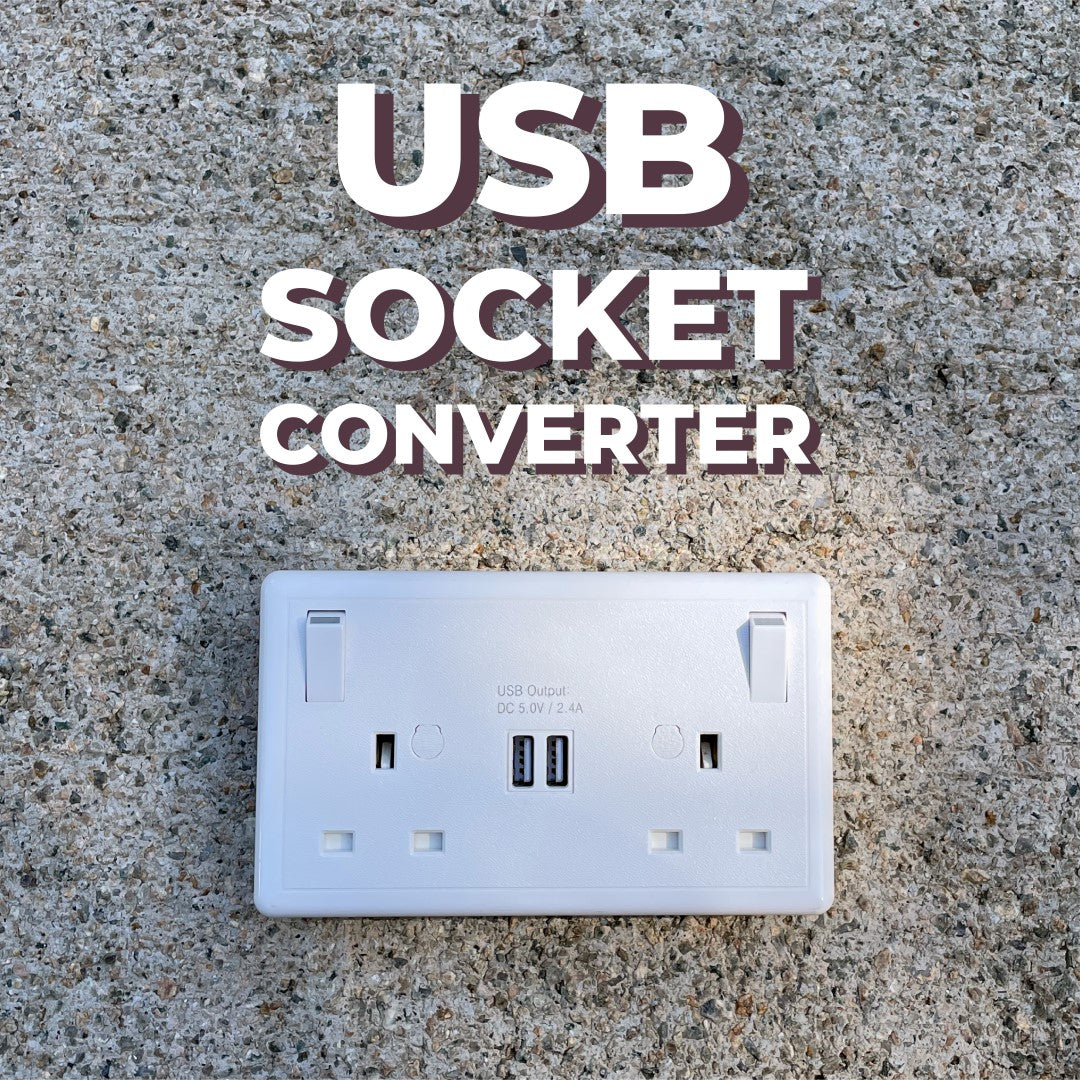

Convertor Socket 1G To 2-Gang 13A with USB (2400mA)
Single to Twin socket converter with USB
Product Description
Conversion Socket
Model 8532
2 Gang switched Conversion Socket with 2 USB charge ports
Product Specification
Principal material - Thermoplastic housing, brass / bronze contact and
bussbars
Input: 250Vac 50 Hz supply , max load 13A
Conversion Socket
Model 8532
2 Gang switched Conversion Socket with 2 USB charge ports
Product Specification
Principal material - Thermoplastic housing, brass / bronze contact and
bussbars
Input: 250Vac 50 Hz supply , max load 13A
Dimension : 146mm x 88mm x 26mm

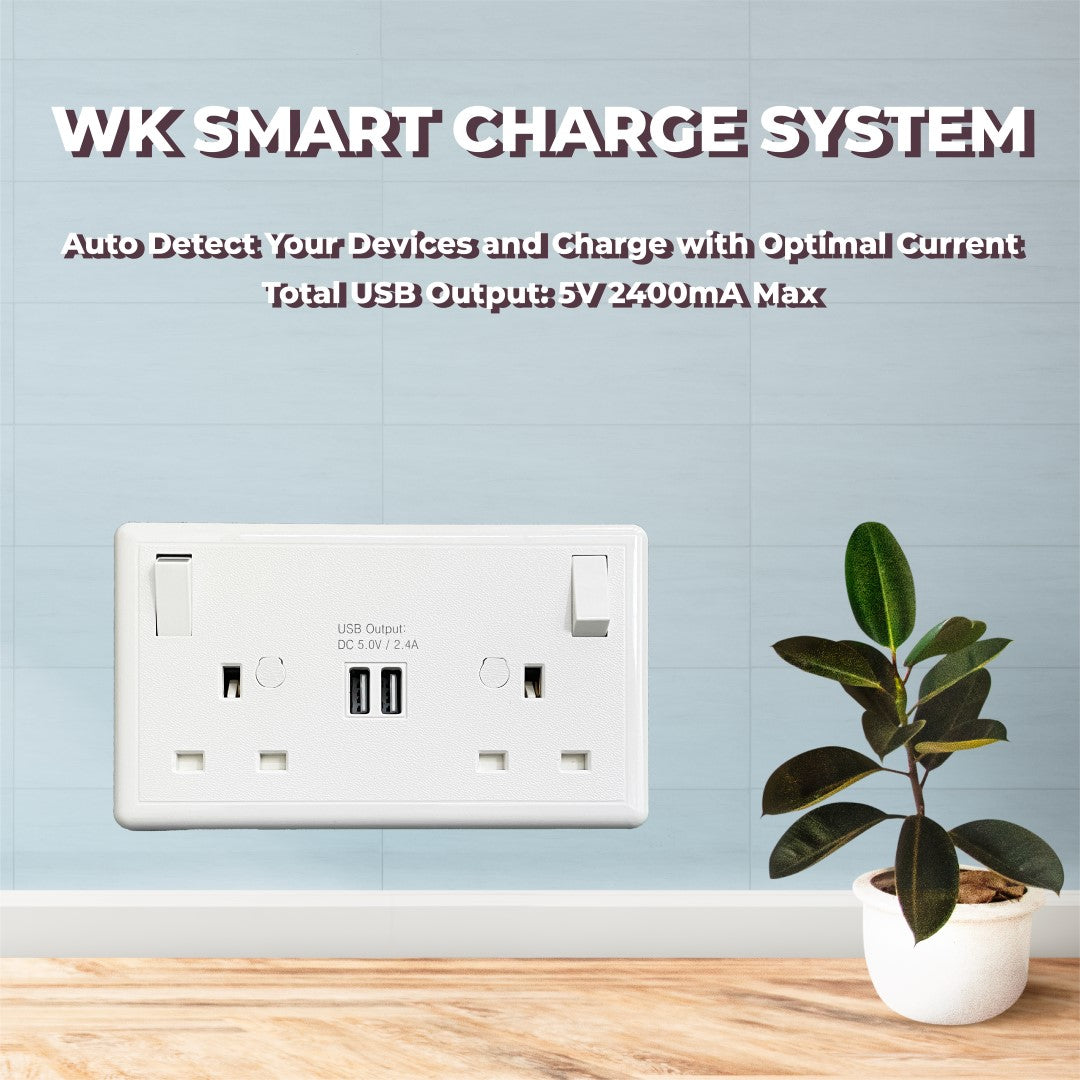

USB ports (combined output)
Typical 5V DC 2400mA with self- setting overheat protection
Conformance to BS or EN No (s) and or approval/s
LVD : BS 1363-2:2016 + A1:2018
EMC directive: EN55022, EN55032, EN55024, EN61000
Intended Application

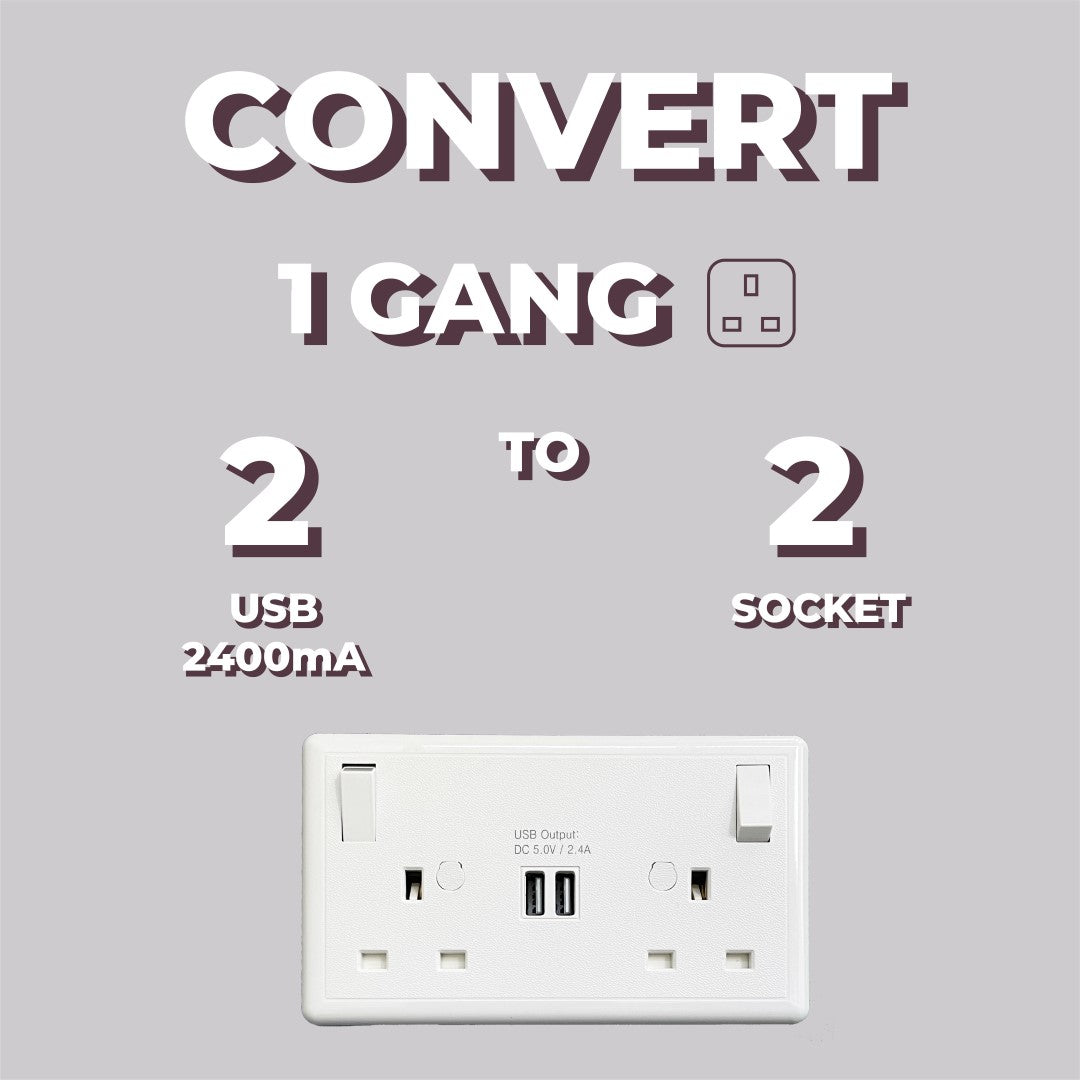

Converts existing single wall plate socket to a 2G socket
USB ports (combined output)
Typical 5V DC 2400mA with self- setting overheat protection
Conformance to BS or EN No (s) and or approval/s
LVD : BS 1363-2:2016 + A1:2018
EMC directive: EN55022, EN55032, EN55024, EN61000
Intended Application
Converts existing single wall plate socket to a 2G socket

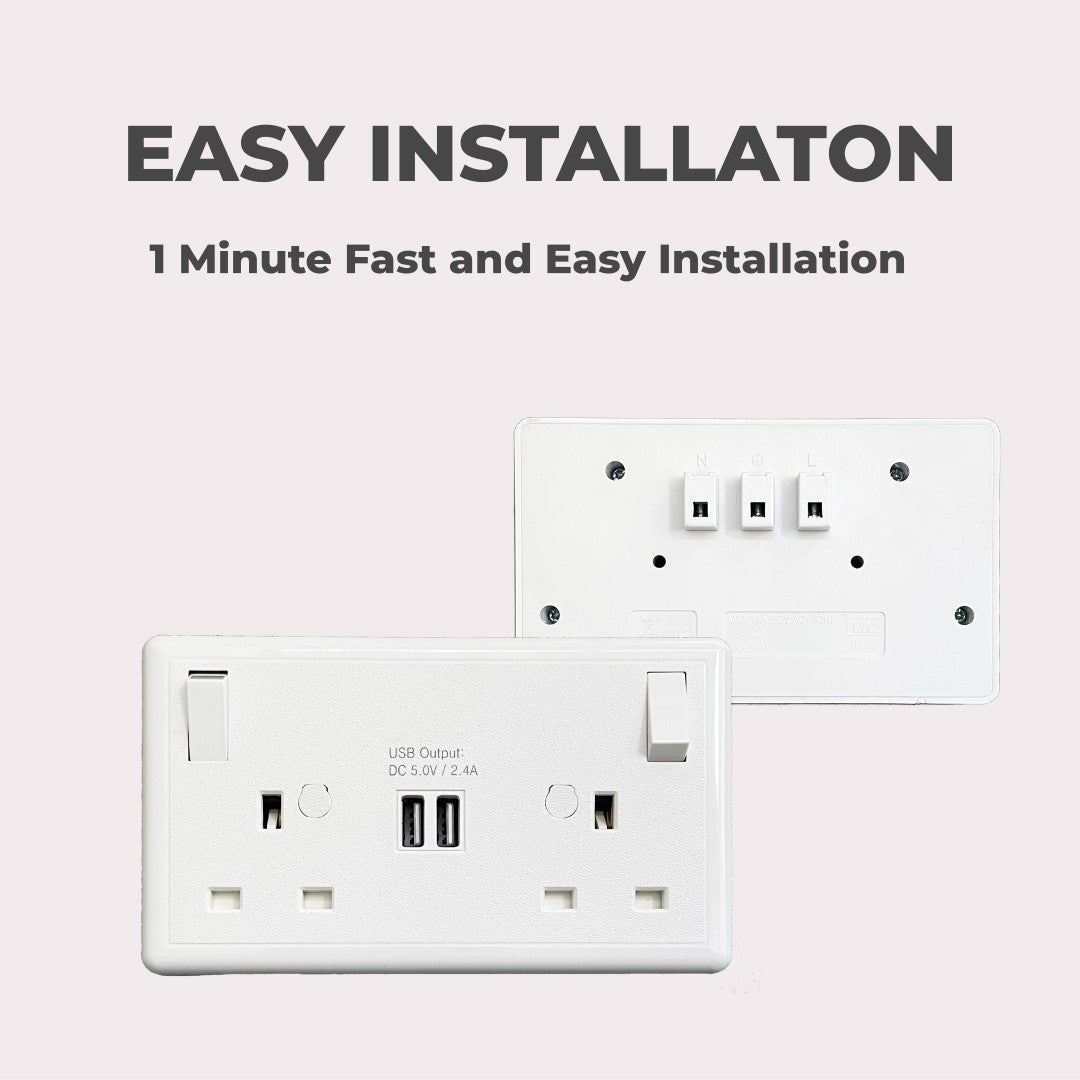

Can be fitted in 25mm BS back box
Installation should be carried out by a qualified electrician
Switch off mains supply during installation and do not over load
Do not operate in damp or humid environment
Do not operate close to heater or high temperature heat source
For Indoor use only
Installation should be carried out by a qualified electrician
Switch off mains supply during installation and do not over load
Do not operate in damp or humid environment
Do not operate close to heater or high temperature heat source
For Indoor use only
